PiLINK
以工業樹莓派CM4/CM5為核心的工業級邊緣運算平台，整合 Ethernet、RS-232/RS-485、CAN、Digital/Analog I/O、LTE/WWAN等工業通訊介面，用於設備資料收集、通訊閘道、邊緣運算及設備監控。應用於工業自動化、智慧製造、設備監控、IIoT、Predictive Maintenance 與 Edge AI。

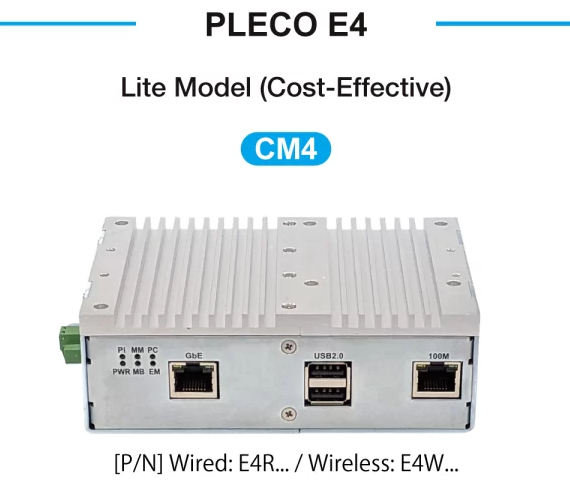

PLECO E4
BCM2711 Arm Cortex-A72 Quad-core
4GB standard RAM, eMMC32GB
Raspberry Pi OS
2x LAN : 1x Gigabit Ethernet, 1x Fast Ethernet
2x USB2.0 : USB2.0 Host Type-A
1x microHDMI : Display connection
1x USB-C : USB Type-C (eMMC write-only)
1x microSD: OS boot not supported by this product, for data storage
2x nanoSIM slot
Optional: Wireless LAN, Bluetooth, BLE or LTE, SSD, Accelerator, etc.
電源供應DC12/24V, range DC9V to 40V / approx. 5 to 20W (including USB)
運作溫度-20 to +65 °C, 濕度0 to 95%
防水IP20, 機殼材質Aluminum / Steel
尺寸: W132.4 × D91.3 × H44.4 mm
防震/抗衝擊IEC 60068-2-6 / IEC 60068-2-27
EMI:Radiated emissions EN55016-2-3
EMS:Electrostatic emission immunity EN 61000-4-2, Radio frequency electromagnetic fields EN 61000-4-3, First transient bursts EN 61000-4-4, Surges EN61000-4-5, Conducted immunity EN61000-4-6

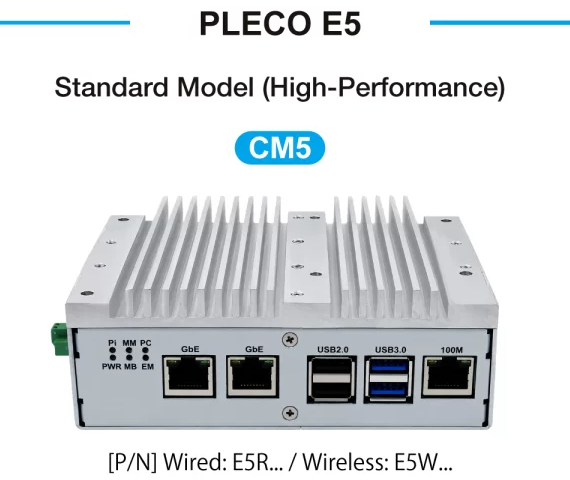

PELCO E5
BCM2712 Arm Cortex-A76 Quad-core
8GB standard RAM, eMMC64GB
Raspberry Pi OS
3x LAN : 2x Gigabit Ethernet, 1x Fast Ethernet
2x USB2.0 : USB2.0 Host Type-A
2x USB3.0 : USB3.0 Host Type-A
1x microHDMI : Display connection
1x USB-C : USB Type-C (eMMC write-only)
1x microSD: OS boot not supported by this product, for data storage
2x nanoSIM slot
Optional: Wireless LAN, Bluetooth, BLE or LTE, SSD, Accelerator, etc.
電源供應DC12/24V, range DC9V to 40V / approx. 5 to 20W (including USB)
運作溫度-20 to +65 °C, 濕度0 to 95%
防水IP20, 機殼材質Aluminum / Steel
尺寸: W132.4 × D91.3 × H44.4 mm
防震/抗衝擊IEC 60068-2-6 / IEC 60068-2-27
EMI:Radiated emissions EN55016-2-3
EMS:Electrostatic emission immunity EN 61000-4-2, Radio frequency electromagnetic fields EN 61000-4-3, First transient bursts EN 61000-4-4, Surges EN61000-4-5, Conducted immunity EN61000-4-6

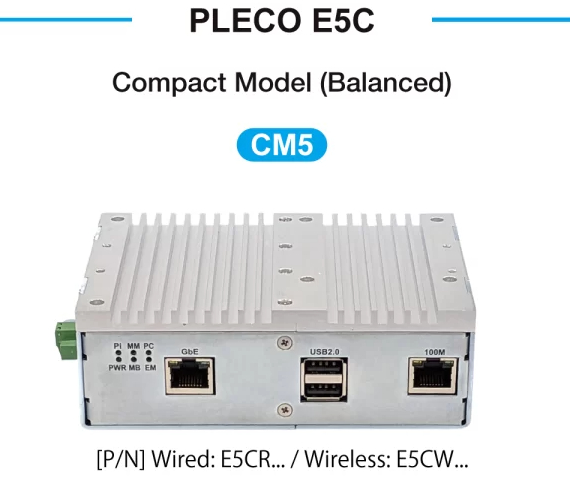

PELCO E5C
BCM2712 Arm Cortex-A76 Quad-core
8GB standard RAM, eMMC64GB
Raspberry Pi OS
2x LAN: 1x Gigabit Ethernet, 1x Fast Ethernet
2x USB2.0: USB 2.0 Host Type-A
1x microHDMI: Display output
1x USB-C: USB Type-C (eMMC programming only)
1x microSD: Data storage only (OS boot not supported)
1x nanoSIM slot
Optional: Wi-Fi, Bluetooth, BLE, LTE, SSD, AI accelerator, etc.
電源供應DC12/24V, range DC9V to 40V / approx. 5 to 15W (including USB)
運作溫度-20 to +60 °C, 濕度0 to 95%
防水IP20, 機殼材質Aluminum / Steel
尺寸: W132.4 × D91.3 × H44.4 mm
防震/抗衝擊IEC 60068-2-6 / IEC 60068-2-27
EMI:Radiated emissions EN55016-2-3
EMS:Electrostatic emission immunity EN 61000-4-2, Radio frequency electromagnetic fields EN 61000-4-3, First transient bursts EN 61000-4-4, Surges EN61000-4-5, Conducted immunity EN61000-4-6

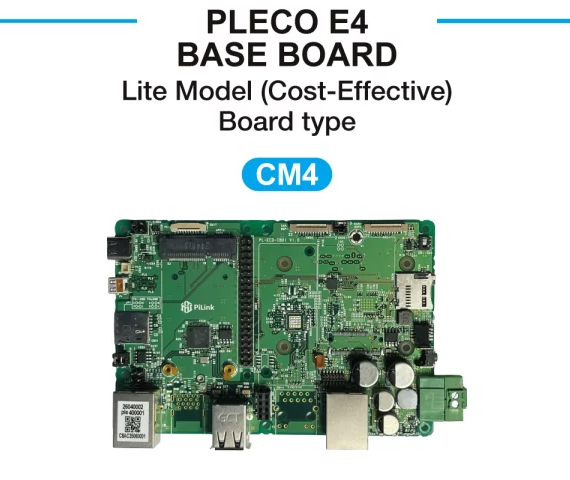

PELCO E4主板
BCM2711 Arm Cortex-A72 Quad-core
4GB standard RAM, eMMC32GB
Raspberry Pi OS
2x LAN : 1x Gigabit Ethernet, 1x Fast Ethernet
2x USB2.0 : USB2.0 Host Type-A
1x microHDMI : Display connection
1x USB-C : USB Type-C (eMMC write-only)
1x microSD: OS boot not supported by this product, for data storage
2x nanoSIM slot
Optional: Wireless LAN, Bluetooth, BLE or LTE, SSD, Accelerator, etc.
電源供應DC12/24V, range DC9V to 40V / approx. 5 to 15W (including USB)
運作溫度-20 to +50 °C, 濕度0 to 95%
防震/抗衝擊IEC 60068-2-6 / IEC 60068-2-27
EMI:Radiated emissions EN55016-2-3
EMS:Electrostatic emission immunity EN 61000-4-2, Radio frequency electromagnetic fields EN 61000-4-3, First transient bursts EN 61000-4-4, Surges EN61000-4-5, Conducted immunity EN61000-4-6

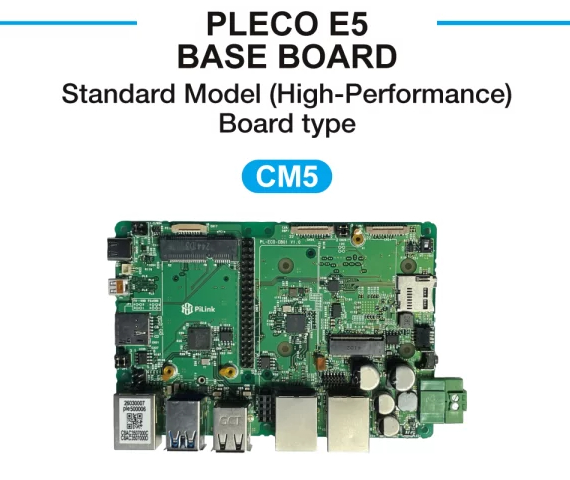

PLECO E5主板
BCM2712 Arm Cortex-A76 Quad-core
8GB standard RAM, eMMC64GB
Raspberry Pi OS
3x LAN : 2x Gigabit Ethernet, 1x Fast Ethernet
2x USB2.0 : USB2.0 Host Type-A
2x USB3.0 : USB3.0 Host Type-A
1x microHDMI : Display connection
1x USB-C : USB Type-C (eMMC write-only)
1x microSD: OS boot not supported by this product, for data storage
2x nanoSIM slot
Optional: Wireless LAN, Bluetooth, BLE or LTE, SSD, Accelerator, etc.
電源供應DC12/24V, range DC9V to 40V / approx. 5 to 20W (including USB)
運作溫度-20 to +50 °C, 濕度0 to 95%
防震/抗衝擊IEC 60068-2-6 / IEC 60068-2-27
EMI:Radiated emissions EN55016-2-3
EMS:Electrostatic emission immunity EN 61000-4-2, Radio frequency electromagnetic fields EN 61000-4-3, First transient bursts EN 61000-4-4, Surges EN61000-4-5, Conducted immunity EN61000-4-6
PLECO E5C主板
BCM2712 Arm Cortex-A76 Quad-core
8GB standard RAM, eMMC64GB
Raspberry Pi OS
2x LAN: 1x Gigabit Ethernet, 1x Fast Ethernet
2x USB2.0: USB2.0 Host Type-A
1x microHDMI: Display connection
1x USB-C: USB Type-C (for eMMC programming only)
1x microSD: OS boot is not supported on this product; for data storage only
2x nanoSIM slots
Options: Wireless LAN, Bluetooth, BLE, LTE, SSD, accelerator, etc.
電源供應DC12/24V, range DC9V to 40V / approx. 5 to 15W (including USB)
運作溫度-20 to +50 °C, 濕度0 to 95%
防震/抗衝擊IEC 60068-2-6 / IEC 60068-2-27
EMI:Radiated emissions EN55016-2-3
EMS:Electrostatic emission immunity EN 61000-4-2, Radio frequency electromagnetic fields EN 61000-4-3, First transient bursts EN 61000-4-4, Surges EN61000-4-5, Conducted immunity EN61000-4-6

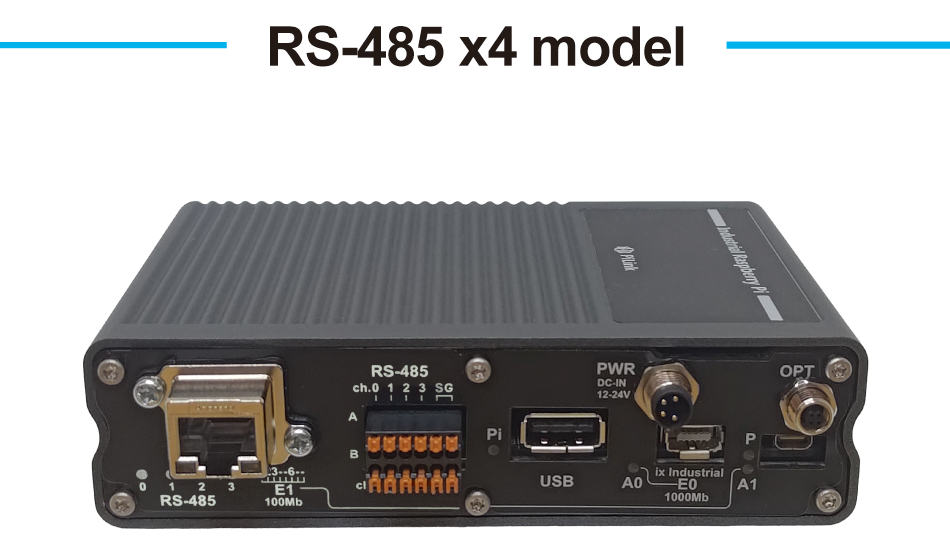

R4 BASIC RJ 485 IP20
Broadcom BCM2711, Quad-core @ 1.5GHz
Standard: 4GB RAM, 32GB eMMC
1x PWR: Power input, 2 systems
2x LAN: 1x FLAN [100Mbps], 1x GLAN [1000Mbps]
1x OPT*1: Selectable i2c/RS-232/485
1x USB: USB 2.0 Host Type-A
4x RS-485:
– 4ch [non-isolated]
– Communication speed: Max. 921,600 [bps]
– Data length: 7, 8 [bit]
– Stop bits: 1, 1.5, 2 [bit]
– Parity: Odd, Even, None
1x Maintenance: Display connection [option]
1x Wireless LAN IEEE 802.11 b/g/n/ac, Bluetooth 5.0, BLE [option]
Option 1x LTE (EM7431 installed in M.2 slot)
電源供應DC 10.7V–28.8V / 12.5W
溫度範圍-20 to +60 °C，濕度0–95%
防護IP20，機殼Powder-coated aluminum
尺寸W132 x D87 x H35 mm

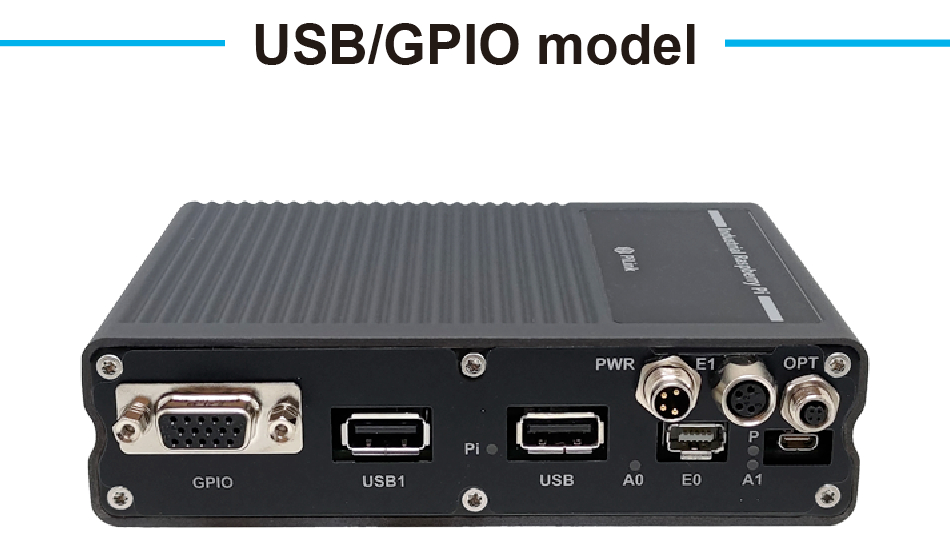

R4 USB/GPIO IP20
Broadcom BCM2711, Quad core @ 1.5GHz
RAM4GB, eMMC32GB
1x PWR : Power input, 2-line
2x LAN : FLAN[100Mbs]x1, GLAN[1000Mbs]x1
1x OPT*1 : i2c/RS-232/485 selectable
2x USB : USB2.0 Host Type-A
1x GPIO :GPIO12pin,GND,3.3V,5V
1x Maintenance: Display connection
Option: 1x WLAN IEEE 802.11 b/g/n/ac, Bluetooth 5.0, BLE
Option: 1x LTE(M.2 slot/EM7431)
電源供應DC 10.7V–28.8V / 15W
溫度範圍-20 to +60 °C，濕度0–95%
防護IP20，機殼Powder-coated aluminum
尺寸W132 x D87 x H35 mm

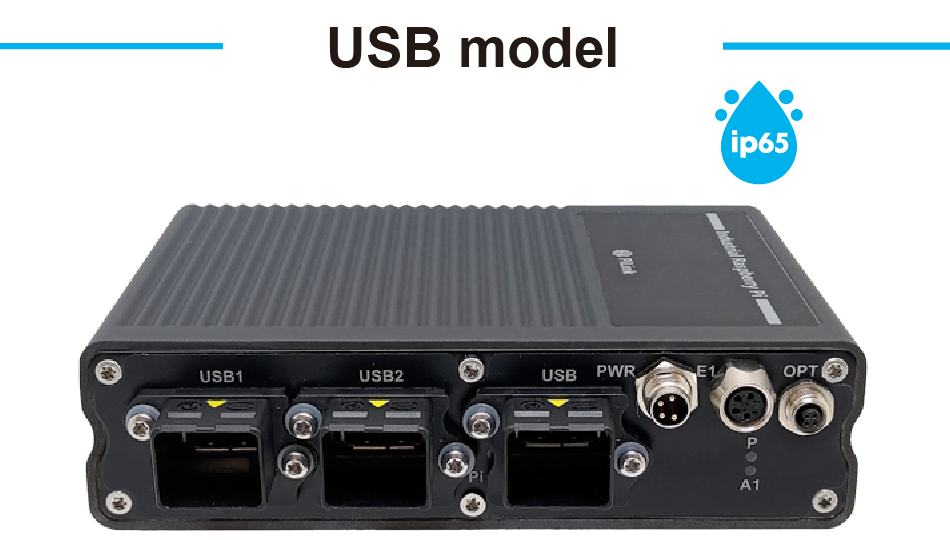

R4 USB IP65
Broadcom BCM2711, Quad core @ 1.5GHz
1x PWR : Power input, 2-line
1x LAN : FLAN[100Mbs]
1x OPT*1 : i2c/RS-232/485 selectable
3x USB : PushPull USB2.0 Host Type-A
電源供應DC 10.7V–28.8V / 17.5W
溫度範圍-20 to +60 °C，濕度0–95%
防護IP65，機殼Powder-coated aluminum
尺寸W132 x D87 x H35 mm
